Settings Overview

MediaShield overviewFree + ProGet MediaShield →

Included in Free. Two cards on this screen only appear with MediaShield Pro (see the end of this page).

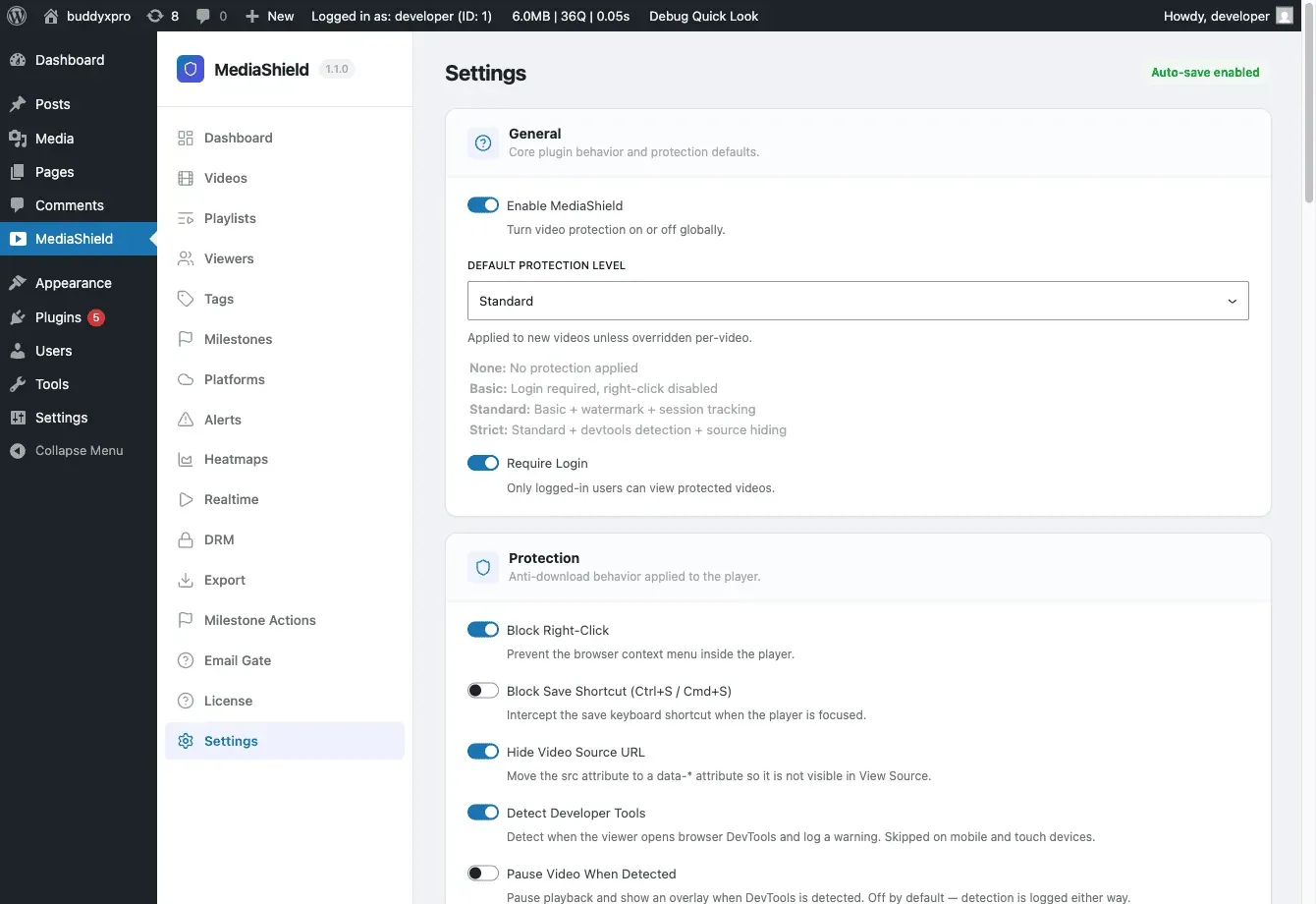

All MediaShield settings live under MediaShield > Settings. The page is one scrolling screen of cards, not tabs. Every change saves by itself a moment after you make it, and a small “Settings saved.” message confirms it. There is no Save button.

  • You need an administrator account. Settings are limited to users who can manage options.
  • If you change a setting and a video on the page does not change, clear any page cache. Settings reach the player when the page is built.
Card What it controls Detail page
General Master switch, default protection level, login requirement This page
Protection Right-click, save shortcut, source hiding, developer tools Protection Settings
Watermark Opacity, colour, move interval, badge Watermarks
Access Allowed domains, concurrent streams Access Control
Analytics Retention How long watch history is kept This page
Login and Access Messages Wording of the login and denied messages This page
Player Controls Speed, keyboard, resume, skipping, sticky, end screen, brand colour Player Settings
Video Ads Break placement for in-video ads Video Ads
Upload and Storage (Pro) Default upload target Pro documentation
LMS Integration (Pro) Lesson completion and enrolment Pro documentation

There are 35 settings in Free. “Default” is the value a new install starts with. Out-of-range numbers are corrected when saved (the range is shown).

Setting (label on screen) Default What it does
Enable MediaShield On Master switch. Off means no protection, no watermark and no tracking anywhere. Videos still play as ordinary embeds.
Default Protection Level Standard The level used by any video that has none of its own. None, Basic, Standard or Strict.
Require Login On Visitors must be logged in to watch. Off lets guests watch, and their sessions are recorded.
Block Right-Click On Hides the browser menu over the player so “Save video as” is not offered.
Block Save Shortcut (Ctrl+S / Cmd+S) Off Stops the save shortcut while the player has focus.
Hide Video Source URL On Self-hosted video only. The page no longer prints the file address.
Detect Developer Tools On Notices when a viewer opens browser developer tools. Skipped on touch devices and narrow screens.
Pause Video When Detected Off Pauses and shows the message below when developer tools are found. Appears only while detection is on.
Overlay Title Developer Tools Detected Heading of that message. Appears only while Pause Video When Detected is on.
Overlay Message Please close developer tools to continue watching this video. Body of that message. Appears only while Pause Video When Detected is on.
Opacity 0.5 Watermark strength from 0 to 1. A decimal, not a percentage.
Watermark Color #ffffff Colour of the watermark text, as a hex code.
Position Swap Interval 30 Seconds before the watermark moves. Minimum 1.
Keep the watermark at the edges Off Keeps the watermark in the corners, off the centre of the video.
Show MediaShield Badge On Small “Protected by MediaShield” label on the player.
Allowed Domains Empty Sites allowed to embed your videos. Separate entries with commas, spaces or new lines, in any mix. A pasted web address is reduced to its domain. Empty allows any. See Access Control.
Max Concurrent Streams 2 Videos one account may watch at the same time. Minimum 1.
Keep watch history for (months) 0 0 keeps everything. 1 to 120 moves older sessions out of reports. See below.
Login Overlay Text Please log in to watch this video Message on the video for visitors who are not logged in.
Login Button Text Log In Label of the login button.
Access Denied Text You do not have access to this video Message for signed-in viewers who lack the role, or whose domain is not allowed.
Speed Control On Speed selector, 0.5x to 2x. Self-hosted, and Bunny with Pro direct playback.
Keyboard Shortcuts On Space, arrows, M and F while the player has focus.
Resume Playback On Offers to continue where the viewer stopped.
Prevent Skipping Ahead Off Blocks seeking beyond the furthest point watched.
Sticky Player Off Keeps the player floating in a corner while the viewer scrolls.
End Screen Off Shows a message and button when the video ends.
End Screen Message Empty Text of the end screen. Shown while End Screen is on.
End Screen Button URL Empty Where the end screen button goes. Empty hides the button.
Brand Color Unset (follows the theme) Colour of buttons, focus outlines and the current playlist item.
Enable In-Video Ads On Master switch for ad breaks. Needs WB Ad Manager to supply ads.
Pre-roll On One ad before the video starts.
Mid-roll Count 3 Ads spaced across the middle of the video. 0 to 10.
Require Full View Off Hides the Skip button so every ad must be watched.
Skip Delay (seconds) 5 Seconds before Skip unlocks. 0 to 60. Ignored when Require Full View is on.
Show Break Markers On Marks on the seek bar for upcoming ad breaks.

The ad rows only appear while Enable In-Video Ads is on. The end screen rows only appear while End Screen is on.

Setting names such as ms_watermark_opacity are listed for developers in the Settings reference.

Enable MediaShield is the master switch. Leave it on. Use Off only for maintenance.

Default Protection Level decides what a video gets when it has no level of its own:

  • None - No protection and no session tracking.
  • Basic - Login gate and right-click blocking. No watermark, and no tracking.
  • Standard - Login gate, watermark, tracking and milestones.
  • Strict - Standard, plus developer-tools detection, pause on detection and source hiding forced on.

Require Login is on by default. Per-video roles, the domain list and any custom rules still apply when it is off.

Keep watch history for (months) defaults to 0, which keeps every session forever. That is the recommended value.

If you enter a number, every month MediaShield moves older sessions into an archive table. Reports do not read that archive, so views, completion rates and top videos stop including anything older. This cannot be undone from the screen. The privacy export and erase tools do read the archive. The screen shows a warning while the value is above 0.

These three texts are what viewers read. While a message still has its default wording it is translated into the viewer’s language. Once you edit it, your exact words are shown.

These appear on the Settings screen only when MediaShield Pro is active.

Setting Default What it does
Default Upload Target Auto Where new uploads go when you do not pick a platform. Auto uses the first connected cloud platform. Other choices are Self-hosted and each connected platform. Shown only when at least one platform is connected.
Auto-complete lessons On Marks the linked LMS lesson complete when the student finishes the video. Shown only when LearnDash, Tutor LMS or LifterLMS is active.
Require enrollment On Master switch for enrolment checks. On means each video’s own “Require enrollment” box decides. Off disables the check everywhere.
Global completion % 100 Watch percentage that triggers lesson completion: 25, 50, 75, 90 or 100.

When MediaShield Pro is not active, the same screen shows a short list of Pro features with a link to the product page.

There is no size setting. Self-hosted files are stored under wp-content/uploads/mediashield/, and your server’s own upload limit applies. See Upload a Video File.
